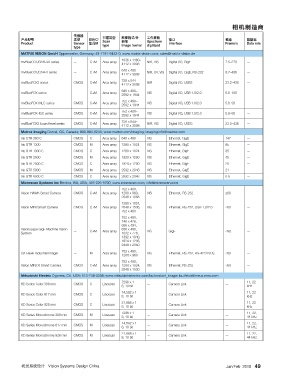

Page 52 - VSDC_JanFeb2018_eMag

相机制造商

传感器
产品型号 类型 彩色C/ 扫描类型 图像格式/分 工作波段 接口 帧率 数据率
Spectrum
Scan
辨率
Product Sensor 黑白M type Image format digitized Interface Frame/s Data rate
type
MATRIX VISION GmbH Oppenweiler, Germany; 49-7191-9432-0; www.matrix-vision.com; sales@matrix-vision.de
1936 x 1460–
mvBlueCOUGAR-XD series — C+M Area array NIR, VIS Digital I/O, GigE 7.5–270 —
4112 x 3008
640 x 480–
mvBlueCOUGAR-X series — C+M Area array NIR, UV, VIS Digital I/O, GigE, RS-232 8.7–436 —
4112 x 3008
728 x 544–
mvBlueFOX3 series CMOS C+M Area array NIR Digital I/O, USB3 23.2–436 —
4112 x 3008
640 x 480–
mvBlueFOX series — C+M Area array VIS Digital I/O, USB 1.0/2.0 5.8–100 —
2592 x 1944
752 x 480–
mvBlueFOX-MLC series CMOS C+M Area array VIS Digital I/O, USB 1.0/2.0 5.8–93 —
2592 x 1944
752 x 480–
mvBlueFOX-IGC series CMOS C+M Area array VIS Digital I/O, USB 1.0/2.0 5.8–93 —
2592 x 1944
728 x 544–
mvBlueFOX3 board-level series CMOS C+M Area array NIR, VIS Digital I/O, USB3 23.2–436 —
4112 x 3008
Matrox Imaging Dorval, QC, Canada; 800-804-6243; www.matrox.com/imaging; imaging.info@matrox.com
Iris GTR 300 C CMOS C Area array 640 x 480 VIS Ethernet, GigE 147 —
Iris GTR 1300 CMOS M Area array 1280 x 1024 VIS Ethernet, GigE 85 —
Iris GTR 1300 C CMOS C Area array 1280 x 1024 VIS Ethernet, GigE 35 —
Iris GTR 2000 CMOS M Area array 1920 x 1200 VIS Ethernet, GigE 45 —
Iris GTR 2000 C CMOS C Area array 1920 x 1200 VIS Ethernet, GigE 20 —
Iris GTR 5000 CMOS M Area array 2592 x 2048 VIS Ethernet, GigE 21 —
Iris GTR 5000 C CMOS C Area array 2592 x 2048 VIS Ethernet, GigE 8.5 —
Microscan Systems Inc Renton, WA, USA; 425-226-5700; www.microscan.com; info@microscan.com
752 x 480,
Vision HAWK Smart Camera CMOS C+M Area array 1280 x 960, VIS Ethernet, RS-232 ≤60 —
2048 x 1088
1280 x 1024,
Vision MINI Smart Camera CMOS C+M Area array 2048 x 1536, VIS Ethernet, RS-232, USB 1.0/2.0 ≤60 —
752 x 480
752 x 480,
748 x 476,
656 x 494,
Visionscape GigE Machine Vision — C+M Area array 656 x 490, VIS GigE ≤90 —
System 1032 x 776,
1392 x 1040,
1624 x 1236,
2448 x 2050
752 x 480,
QX Hawk Industrial Imager — M Area array VIS Ethernet, RS-232, RS-422/LVDS ≤60 —
1280 x 960
752 x 480,
Vision MINI Xi Smart Camera CMOS C+M Area array 1280 x 1024, VIS Ethernet, RS-232 ≤60 —
2048 x 1530
Mitsubishi Electric Cypress, CA, USA; 513-748-3338; www.mitsubishielectric.com/bu/contact_image; lou.fetch@meus.mea.com
7296 x 1 11, 22
KD Series Color 309 mm CMOS C Linescan — Camera Link —
8, 10 bit kHz
14,592 x 1 11, 22
KD Series Color 617 mm CMOS C Linescan — Camera Link —
8, 10 bit kHz
21,888 x 1 11, 22
KD Series Color 926 mm CMOS C Linescan — Camera Link —
8, 10 bit kHz
7296 x 1 11, 22,
KD Series Monochrome 309 mm CMOS M Linescan — Camera Link —
8, 10 bit 44 kHz
14,592 x 1 11, 22,
KD Series Monochrome 617 mm CMOS M Linescan — Camera Link —
8, 10 bit 44 kHz
21,888 x 1 11, 22,
KD Series Monochrome 926 mm CMOS M Linescan — Camera Link —
8, 10 bit 44 kHz

视觉系统设计 Vision Systems Design China Jan/Feb 2018 49
