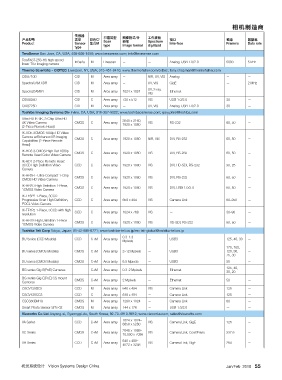

Page 58 - VSDC_JanFeb2018_eMag

相机制造商

传感器
产品型号 类型 彩色C/ 扫描类型 图像格式/分 工作波段 接口 帧率 数据率
Spectrum
Scan
辨率
Product Sensor 黑白M type Image format digitized Interface Frame/s Data rate
type
TeraSense San Jose, CA, USA; 408-600-1459; www.terasense.com; info@terasense.com
TeraFAST-256-HS high speed InGaAs M Linescan — — Analog, USB 1.0/2.0 5000 5 kHz
linear THz imaging camera
Thermo Scientific - CIDTEC Liverpool, NY, USA; 315-451-9410; www.thermofisher.com/cidtec; tony.chapman@thermofisher.com
CID8710D CID M Area array — NIR, UV, VIS Analog — —
SpectraCAM XDR CID M Area array — UV, VIS GigE — 2 MHz
UV, X-ray,
SpectraCAM84 CID M Area array 1024 x 1024 Ethernet — —
VIS
CID8825D CID C Area array 730 x 512 VIS USB 1.0/2.0 30 —
CID8725D CID M Area array — UV, VIS Analog, USB 1.0/2.0 30 —
Toshiba Imaging Systems Div Irvine, CA, USA; 810-357-5022; www.toshibacameras.com; gary.pitre@toshiba.com
Ultra HD IK-4K, 3-Chip Ultra HD 3840 x 2160,
4K Video Camera CMOS C Area array 1920 x 1080 VIS RS-232 60, 50 —
(2-Piece Remote Head)
IK-HD5 3CMOS 1080p HD Video
Camera w/Enhanced IR Imaging CMOS C Area array 1920 x 1080 NIR, VIS DVI, RS-232 60, 50 —
Capabilities (2-Piece Remote
Head)
IK-HD3 3-CMOS High Def 1080p CMOS C Area array 1920 x 1080 VIS DVI, RS-232 60, 50 —
Remote Head Color Video Camera
IK-HD1 2-Piece Remote Head
3CCD High Definition Video CCD C Area array 1920 x 1080 VIS DVI, HD-SDI, RS-232 30, 25 —
Camera
IK-HR3H - Ultra-Compact 1-Chip CMOS C Area array 1920 x 1080 VIS DVI, RS-232 60, 50 —
CMOS HD Video Camera
IK-HR2D High Definition 1-Piece, CMOS C Area array 1920 x 1080 VIS DVI, USB 1.0/2.0 60, 50 —
1CMOS Video Camera
IK-TF5P2 1-Piece, 3CCD
Progressive Scan High Definition, CCD C Area array 659 x 494 VIS Camera Link 60–250 —
POCL Video Camera
IK-TF7P2 1-Piece, 3CCD with high CCD C Area array 1024 x 768 VIS — 30–90 —
resolution
IK-HR1S High Definition 1-Piece CMOS C Area array 1920 x 1080 VIS HD-SDI, RS-232 60, 50 —
1CMOS Video Camera
Toshiba Teli Corp Tokyo, Japan; 81-42-589-8771; www.toshiba-teli.co.jp/en; teli-global@toshiba-teli.co.jp
0.3–1.3
BU Series (CCD Models) CCD C+M Area array — USB3 125, 40, 30 —
Mpixels
170, 165,
BU series (CMOS Models) CMOS C+M Area array 2–12 Mpixels — USB3 120, 90, —
75, 30
DU series (CMOS Models) CMOS C+M Area array 6.5 Mpixels — USB3 55 —
125, 40,
BG series Gig-E(PoE) Cameras — C+M Area array 0.3–2 Mpixels — Ethernet —
30, 20
BG series Gig-E(PoE) CS mount CMOS C+M Area array 2 Mpixels — Ethernet 50 —
Cameras
CSCV125BC3 CCD M Area array 648 x 494 VIS Camera Link 125 —
CSCV125CC3 CCD C Area array 648 x 494 — Camera Link 125 —
CSCS60BM18 CMOS M Area array 1280 x 1024 — Camera Link 60 —
Smart Photo Sensor SPS-02 CMOS M Area array 144 x 176 — USB 1.0/2.0 — —
Vieworks Co Ltd Anyang-si, Gyeonggi-do, South Korea; 82-70-4910-9812; www.vieworks.com; sales@vieworks.com
1024 x 1024–
VA Series CCD C+M Area array VIS Camera Link, GigE 125 —
8856 x 5280
2048 x 1088–
VC Series CMOS C+M Area array VIS Camera Link, CoaXPress 337.6 —
10,000 x 7096
640 x 480–
VH Series CCD C+M Area array VIS Camera Link, GigE 264 —
4872 x 3248
