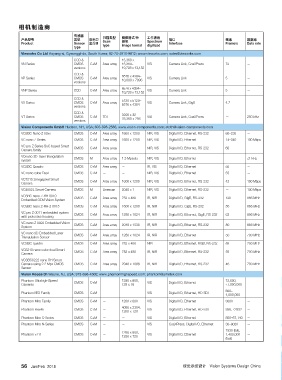

Page 59 - VSDC_JanFeb2018_eMag

相机制造商

传感器
产品型号 类型 彩色C/ 扫描类型 图像格式/分 工作波段 接口 帧率 数据率
Spectrum
Scan
辨率
Product Sensor 黑白M type Image format digitized Interface Frame/s Data rate
type
Vieworks Co Ltd Anyang-si, Gyeonggi-do, South Korea; 82-70-4910-9812; www.vieworks.com; sales@vieworks.com
CCD & 15,360 x
VN Series CMOS C+M Area array 15,360– VIS Camera Link, CoaXPress 72 —
versions 19,728 x 13,152
CCD &
VP Series CMOS C+M Area array 6576 x 4384– VIS Camera Link 5 —
10,000 x 7096
versions
6576 x 4384–
VNP Series CCD C+M Area array VIS Camera Link 5 —
19,728 x 13,152
CCD &
VX Series CMOS C+M Area array 5120 x 5120– VIS Camera Link, GigE 4.7 —
6576 x 4384
versions
CCD &
VT Series CMOS C+M TDI 3200 x 32– VIS Camera Link, CoaXPress — 250 kHz
23,360 x 256
versions
Vision Components GmbH Hudson, NH, USA; 603-598-2588; www.vision-components.com; etoth@vision-components.com
VCSBC Nano Z 00xx CMOS C+M Area array 1600 x 1200 NIR, VIS Digital I/O, Ethernet, RS-232 60–230 —
VC nano Z Series CMOS C+M Area array 1600 x 1200 NIR, VIS Digital I/O, Ethernet 14–340 100 Mbps
VC pro Z Series SoC based Smart CMOS C+M Area array — NIR, VIS Digital I/O, Ethernet, RS-232 60 —
Camera family
VCnano 3D laser triangulation CMOS M Area array 1.3 Mpixels NIR, VIS Digital I/O, Ethernet — ≤1 kHz
system
VCSBC Quadro CMOS C+M Area array — IR, VIS Digital I/O, Ethernet 50 —
VC nano cube Dual CMOS C+M — — NIR, VIS Digital I/O, Ethernet 55 —
VC7215 2megapixel Smart CMOS C+M Area array 1600 x 1200 NIR, VIS Digital I/O, Ethernet, RS-232 42 100 Mbps
Camera
VC4002L Smart Camera CMOS M Linescan 2048 x 1 NIR, VIS Digital I/O, Ethernet, RS-232 — 100 Mbps
VCSBC nano Z-RH 0010 CMOS C+M Area array 752 x 480 IR, NIR Digital I/O, GigE, RS-232 120 866 MHz
Embedded OEM Vision System
VCSBC nano Z-RH-2 0015 CMOS C+M Area array 1600 x 1200 IR, NIR Digital I/O, GigE, RS-232 50 866 MHz
VC pro Z 0011 embedded system CMOS C+M Area array 1280 x 1024 IR, NIR Digital I/O, Ethernet, GigE, RS-232 63 866 MHz
with protective housing
VC nano Z 0022 Embedded Vision CMOS C+M Area array 2048 x 1536 IR, NIR Digital I/O, Ethernet, RS-232 80 866 MHz
System
VC nano 3D Embedded Laser CMOS C+M Area array 1280 x 1024 IR, NIR Digital I/O, Ethernet 50 700 MHz
Triangulation Sensor
VCSBC quadro CMOS C+M Area array 752 x 480 NIR Digital I/O, Ethernet, RGB, RS-232 55 700 MHz
VC6210 nano cube dual Smart CMOS C+M Area array 752 x 480 IR, NIR Digital I/O, Ethernet, RS-232 55 700 MHz
Camera
VCSBC6222 nano RH Smart
Camera using 2.2 Mpx CMOS CMOS C+M Area array 2048 x 1088 IR, NIR Digital I/O, Ethernet, RS-232 46 700 MHz
Sensor
Vision Research Wayne, NJ, USA; 973-696-4500; www.phantomhighspeed.com; phantom@ametek.com
Phantom Ultrahigh-Speed CMOS C+M — 1280 x 800, VIS Digital I/O, Ethernet 12,600, —
Cameras 128 x 16 ≤1,000,000
800–
PhantomVEO Family CMOS C+M — — VIS Digital I/O, Ethernet, HD-SDI —
1,000,000
Phantom Miro Family CMOS C+M — 1280 x 800 VIS Digital I/O, Ethernet 3000 —
4096 x 2304,
Phantom Flex4k CMOS C+M — VIS Digital I/O, Ethernet, HD-SDI 938, ≤2932 —
1280 x 720
Phantom Miro C-Series CMOS C+M — — VIS Digital I/O, Ethernet 800–67,140 —
Phantom Miro N-Series CMOS C+M — — VIS CoaXPress, Digital I/O, Ethernet 30–9020 —
7530 (full),
1280 x 800,
Phantom v711 CMOS C+M — VIS Digital I/O, Ethernet 1,400,000 —
1280 x 720
(fast)

56 Jan/Feb 2018 视觉系统设计 Vision Systems Design China
